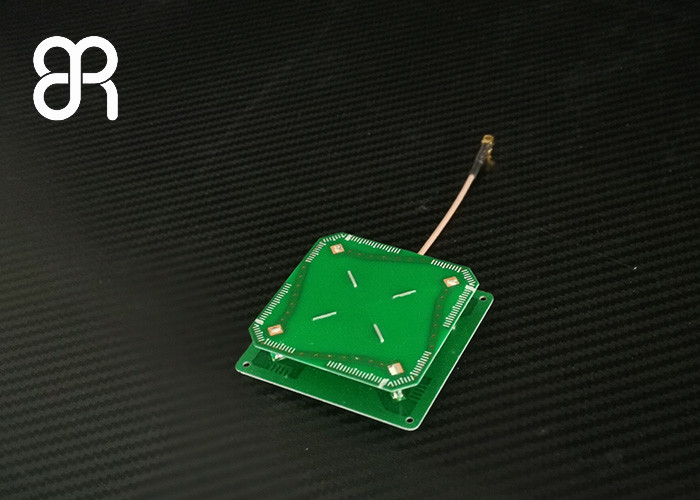

BRA-20 Size 60×60×15.6mm Gain≥ 4 dBic Small RFID Antenna for IOT RFID handset VSWR≤1.3
Provide custom design services
Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.
Product Features
1,Electrical performance: The general-purpose antenna suitable for UHF band RFID terminals has high gain, miniaturization and low standing wave.
2,Mechanical properties: small size, light weight, suitable for terminal equipment such as handheld devices.
3,The BRA-20 antenna can be conveniently applied to terminal applications such as UHF band RFID handsets.
Performance Specifications
| Frequency Range | 902MHz-928MHz(865MHz～868MHz) |
| VSWR | ≤1.3:1 |
| Gain | ≥ 4 dBic |
| Radiation angle | horizontal 120° × vertical 120° |
| Axial ratio | ＜3dB |
| Polarization | Circular polarization |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | MMCX (SMA optional) |
Core technology advantage
1) Have complete R&D and testing equipment, including darkroom, network analyzer, label tester, comprehensive tester, etc.;
2) Master core technologies such as phase control technology, multi-beam phase control system, wide-band vibrator and multi-system design;
3) Have rich application and project experience, have done RFID projects of various application types, and are familiar with how to choose antenna, label and reader products to get the best system integration effect.
Shenzhen Broadradio RFID Technology Co., Ltd. (referred to as "Broadradio"), established in 2014, is specialized in RFID antennas, electronic tags, rfid access control, rfid handsets, rfid readers, rfid file cabinets, etc. Double high-tech enterprises in product development, production and sales (national high-tech enterprises, Shenzhen high-tech enterprises). The team has excellent independent innovation capabilities. At present, it has more than 20 project testing equipment and more than 100 RF testers. At the same time, the company's RFID products have obtained a number of patents issued by the state, a number of PCT international patents, and domestic invention patents.
