BRA-04 RFID Handheld Reader Small RFID Antenna 2dBic Gain Sise 50mm×50mm×8mm
Compared with the traditional bar code, magnetic card, IC card identification methods, RFID technology has the advantages of identifying multiple electronic tags at one time, fast efficiency, accurate collection, strong penetrating ability, remote identification and collection, and not easy to damage. It is suitable for realizing the system Automated data collection
Features
1) The antenna voltage standing wave ratio is less than 1.3, excellent performance
2) It belongs to a circularly polarized antenna with high gain and low standing wave.
3) Small size, beautiful appearance and easy installation
4) The connector type is SMA female
5) Antenna for RFID handheld terminals in the UHF band
Performance Specifications
| Frequency Range | 902MHz～928MHz |
| VSWR | ≤1.3:1 |
| Gain | >2dBic |
| Polarization | Circular Polarization |
| Axial ratio | <3dB |
| Relative humidity | 5%～95% |
| Impedance | 50±1Ω |
| Connector Type | SMA (IPX optional) |
Provide custom design services
Broadradio provides customers with customized RFID antennas and labels and other hardware products, providing customized design services for enterprises, schools and research institutes.
Broadradio specializes in RFID, production and sales of RFID tags and RFID antennas, and is a national high-tech enterprise. With excellent independent innovation ability and professional technical team, it has obtained a number of national patents and PCT international patents. With more than 10 years of RFID project experience, you are familiar with how to choose antennas, tags and readers for optimal system integration. It is your ideal partner.
Product Tags:
|
|

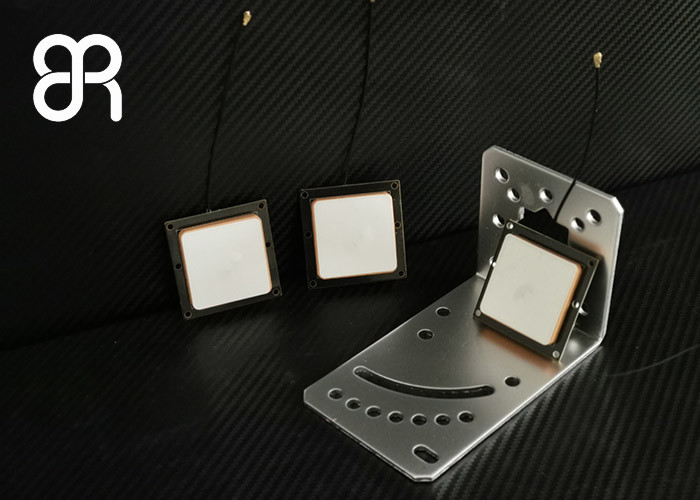

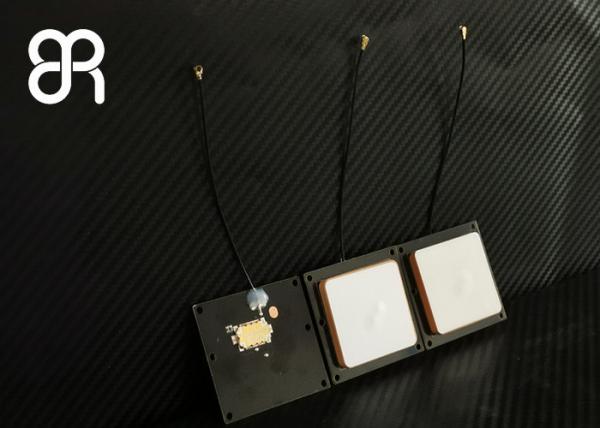

SMA Connector Ceramic 2dBic RFID Reader Antenna 50×50×8mm Images
|
